すべての製品は予約注文です(発送予定:First half of 2027) すべての予約注文は、発送前であれば全額返金が可能です EUから発送します!

FluxPose

透過性トラッカー

通常価格 €108,90 税込

発送予定:First half of 2027

商品情報

同梱物
This item includes:
1x FluxPose Transparent Tracker
仕様
## Tracker - **Dimensions:** 37 × 37 × 11 mm. - **Weight:** 15 g per Tracker. - **Battery:** Lithium polymer, 190 mAh at 3.7 V. - **Battery life:** Up to 24 hours in normal use. - **Charging:** Magnetic charging contacts on a FluxPose Dock. - **Haptics:** Supported. **Requires a FluxPose Beacon and a compatible receiver. The charging Dock is sold separately when purchasing a Tracker alone.** ## Tracking system - **Tracking volume:** A wearable sphere, 3.4 m in diameter, around the Beacon. - **Update rate:** 100 Hz by default; configurable from 50 to 300 Hz. - **Movement-to-SteamVR latency:** 1.5 ms or the update period, whichever is higher. - **Static accuracy:** ±1.75 mm and ±0.5°, verified individually within a 1 m radius sphere. Metal in the environment may reduce accuracy. - **Calibration:** Built-in EMF and IMU calibration across the operating temperature range. - **Operating temperature:** 5–50 °C. - **Tracking modes:** Raw 6DOF; 6DOF with forward kinematics for feet requires two trackers per leg. - **Software:** FluxPose App with SteamVR and OSC support. *Specifications are not final and may change.*

商品詳細

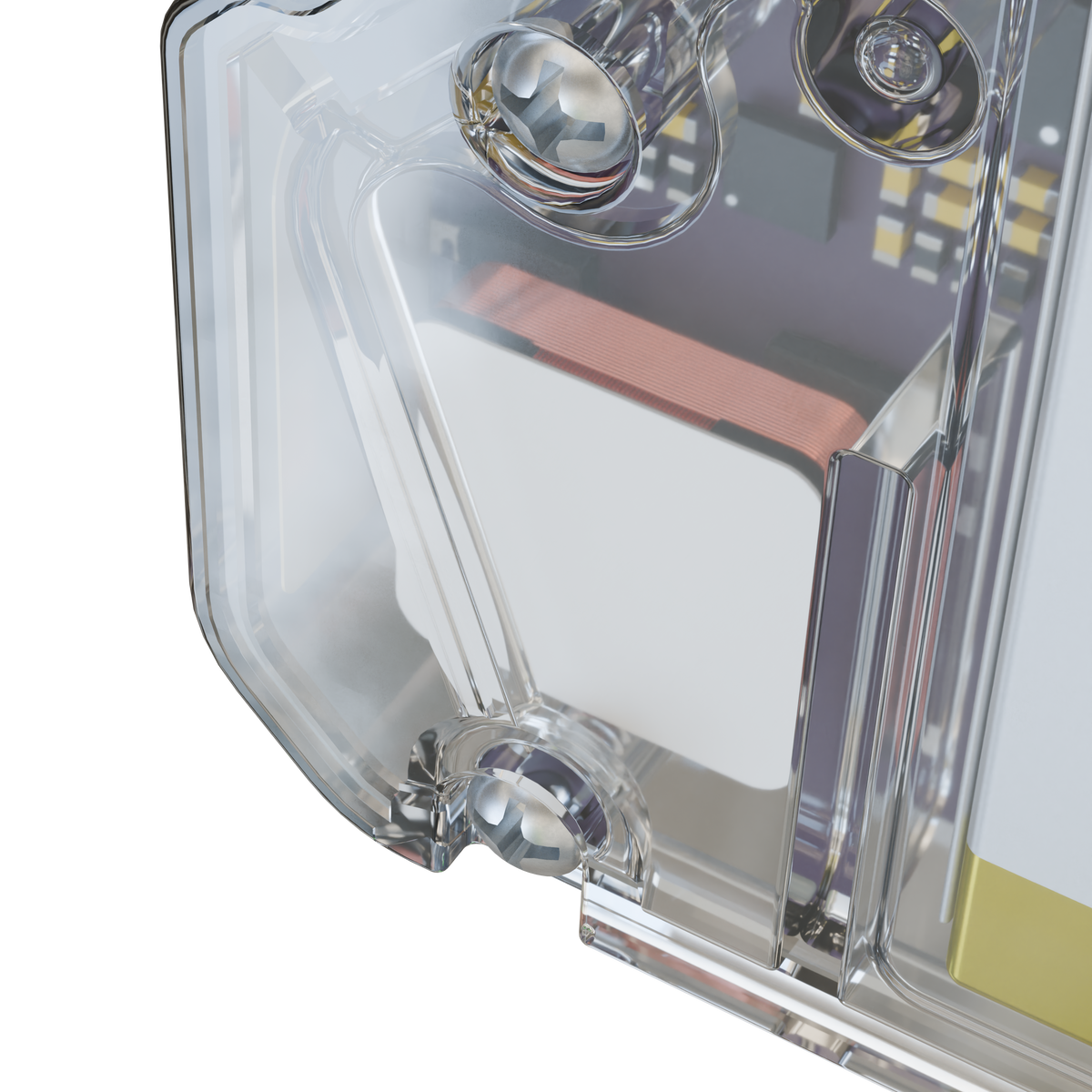

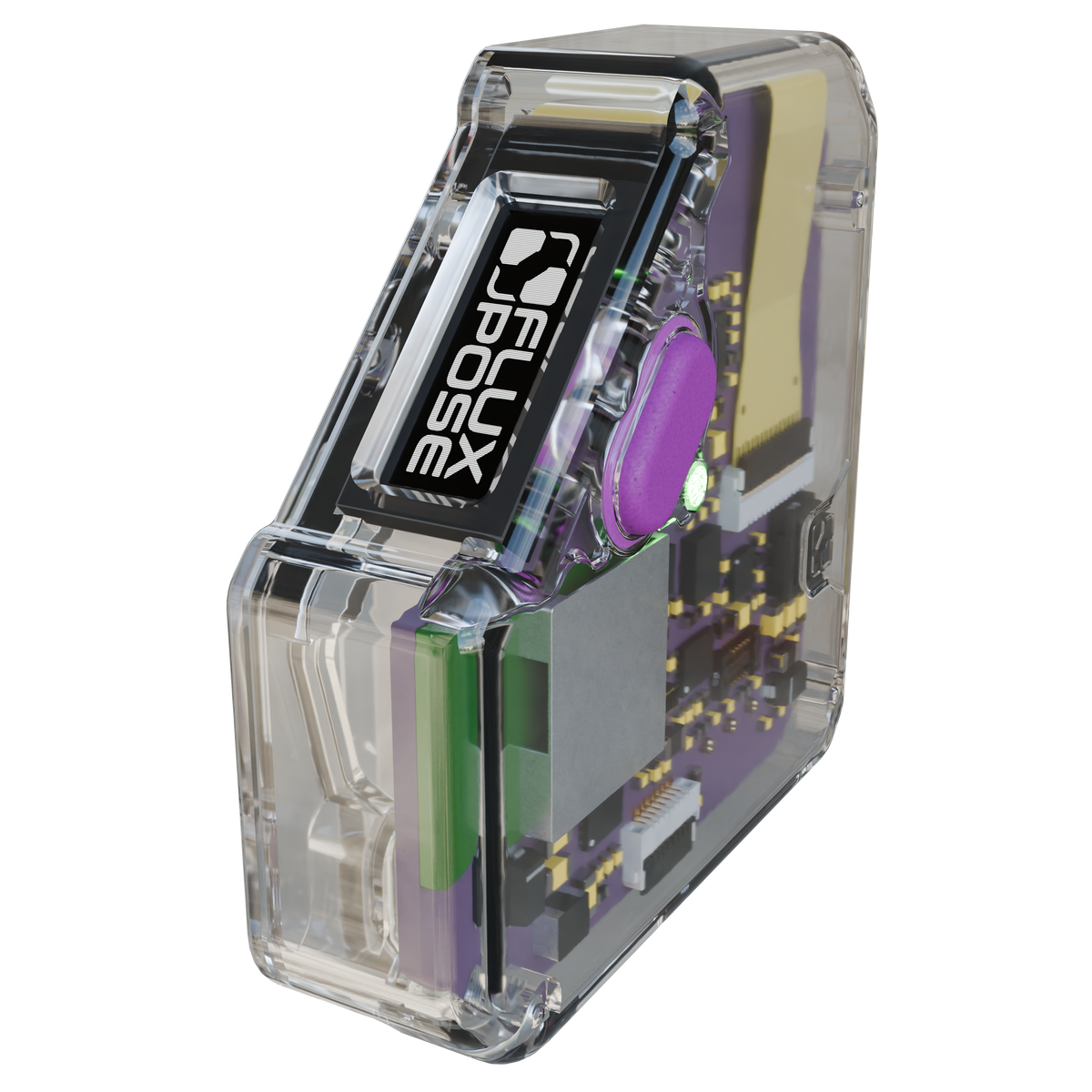

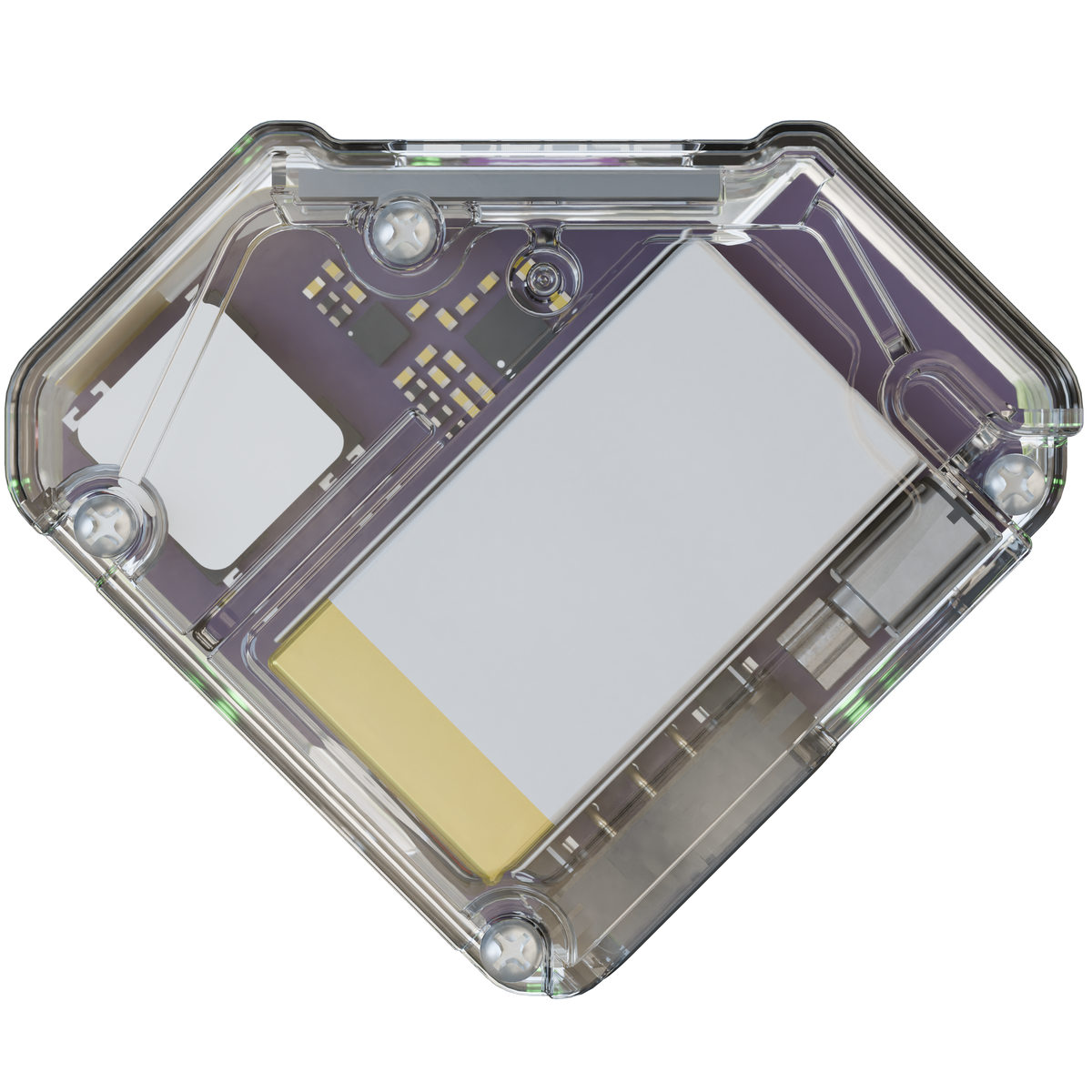

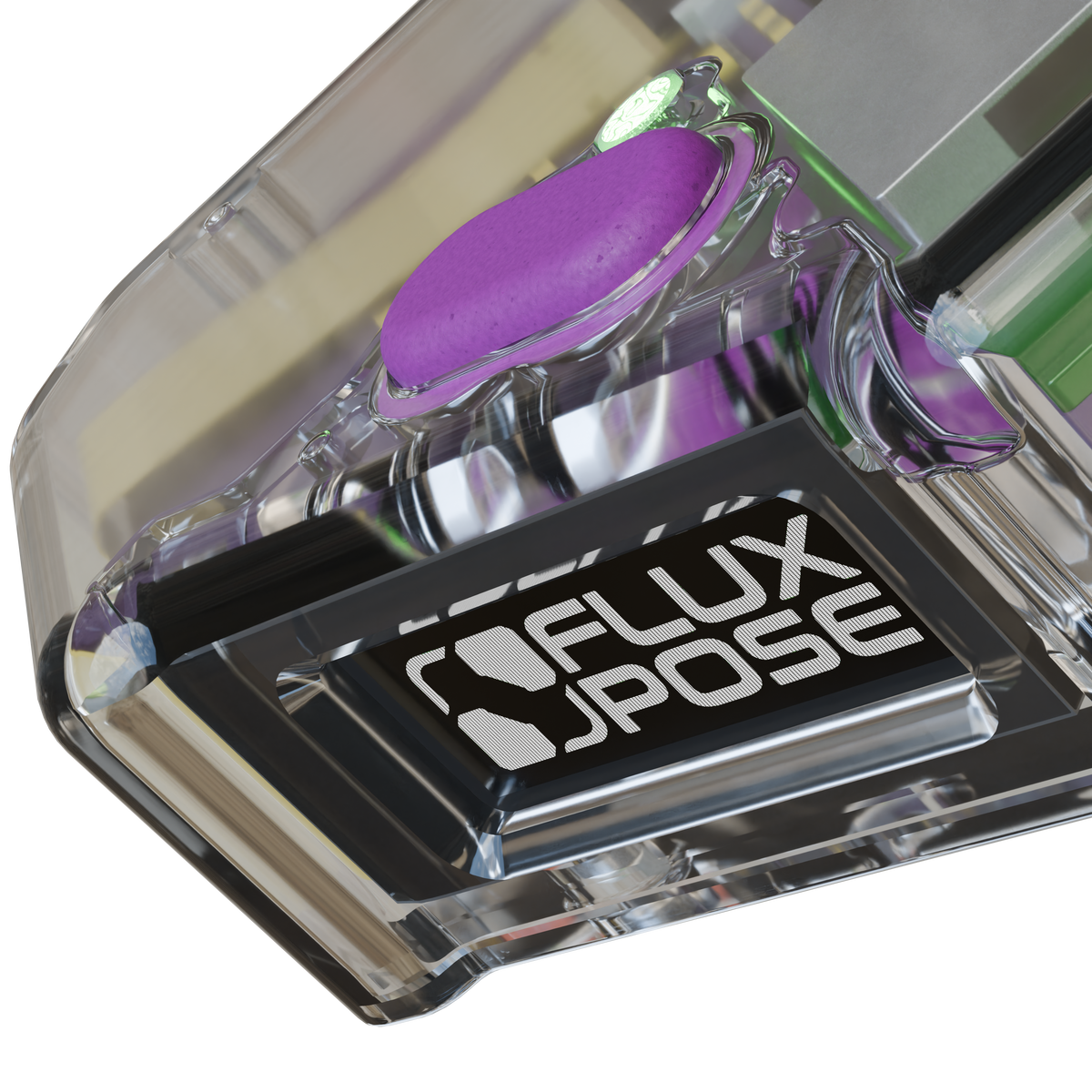

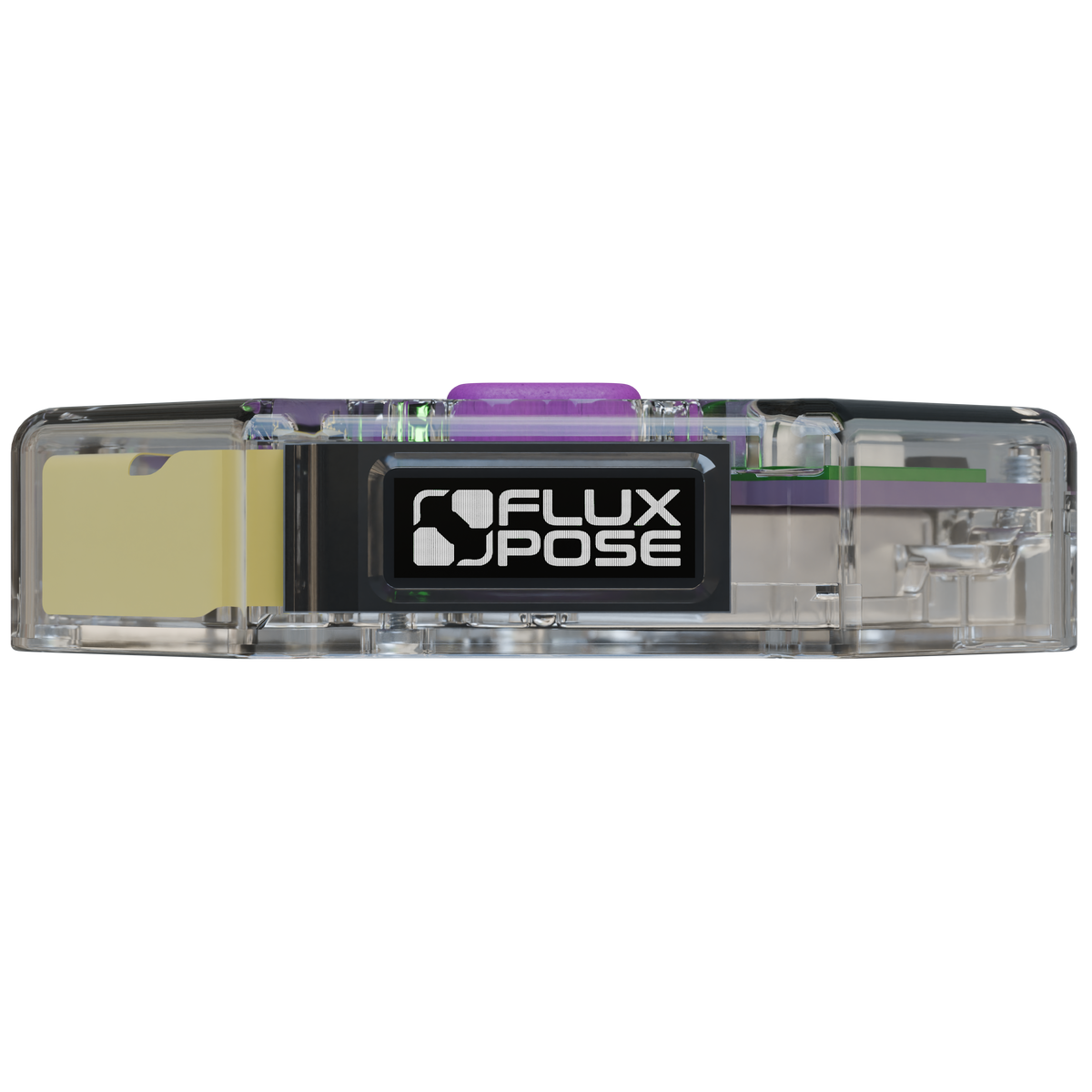

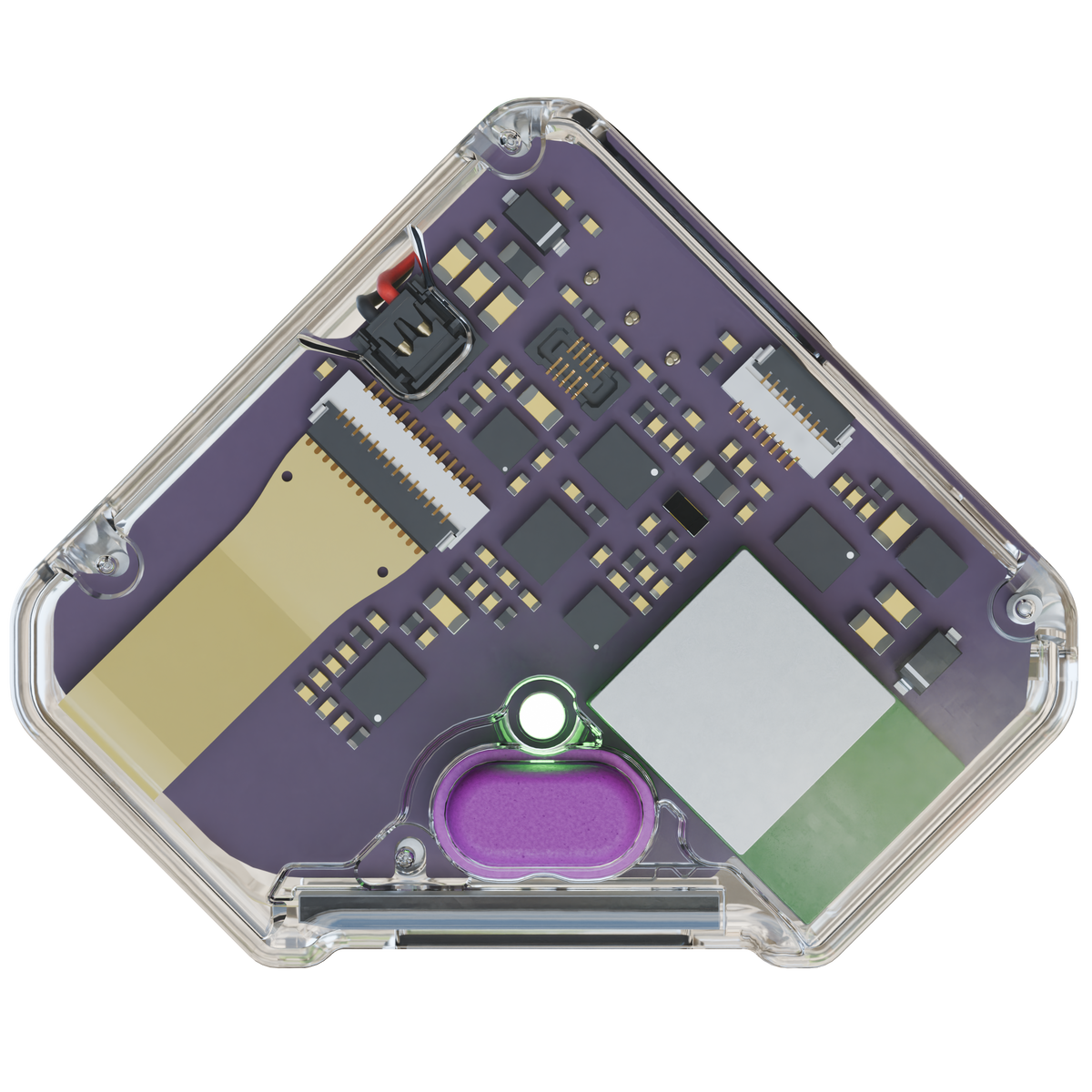

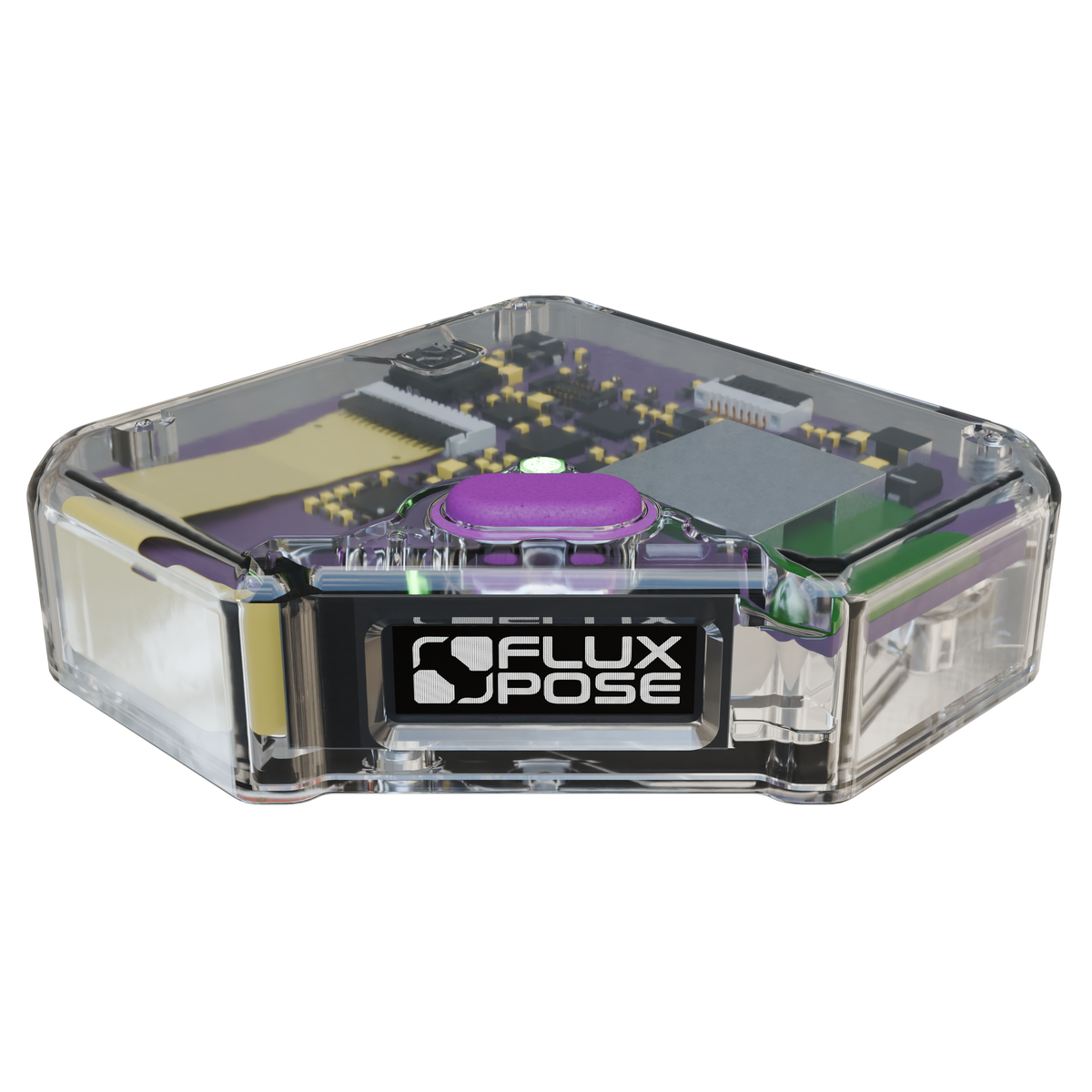

FluxPose Tracker - Transparent Edition

身体、物体などをトラッキング

FluxPose Tracker Transparent Editionは、超コンパクトなフォームファクタで同じ正確な6自由度位置トラッキングを実現し、内部のテクノロジーが見える透明なハウジングに包まれています。クリーンなエンジニアリングとユニークな美学を好む愛好家に最適です。

フルボディセットアップの構築、小道具のトラッキング、カスタムハードウェアの実験など、この単一のトラッカーは、際立ったデザインでシステムを自由に拡張できる柔軟性を提供します。




視線不要の絶対トラッキング

FluxPose Beacon(別売り)は、トラッカーが3D空間における正確な位置を特定するために使用するEMFフィールドを生成します。
家具の後ろ、毛布の下、またはプレイ空間全体を自由に動き回ることができ、遮蔽を心配する必要はありません。

ビーコンは腰に装着するように設計されており、邪魔にならず、VRヘッドセットがトラッキングできるすべての場所でトラッキングを可能にするだけでなく、ヒップトラッカーとしても機能します!


簡単な充電

FluxPose Dock(別売り)を使用して簡単に充電できます。

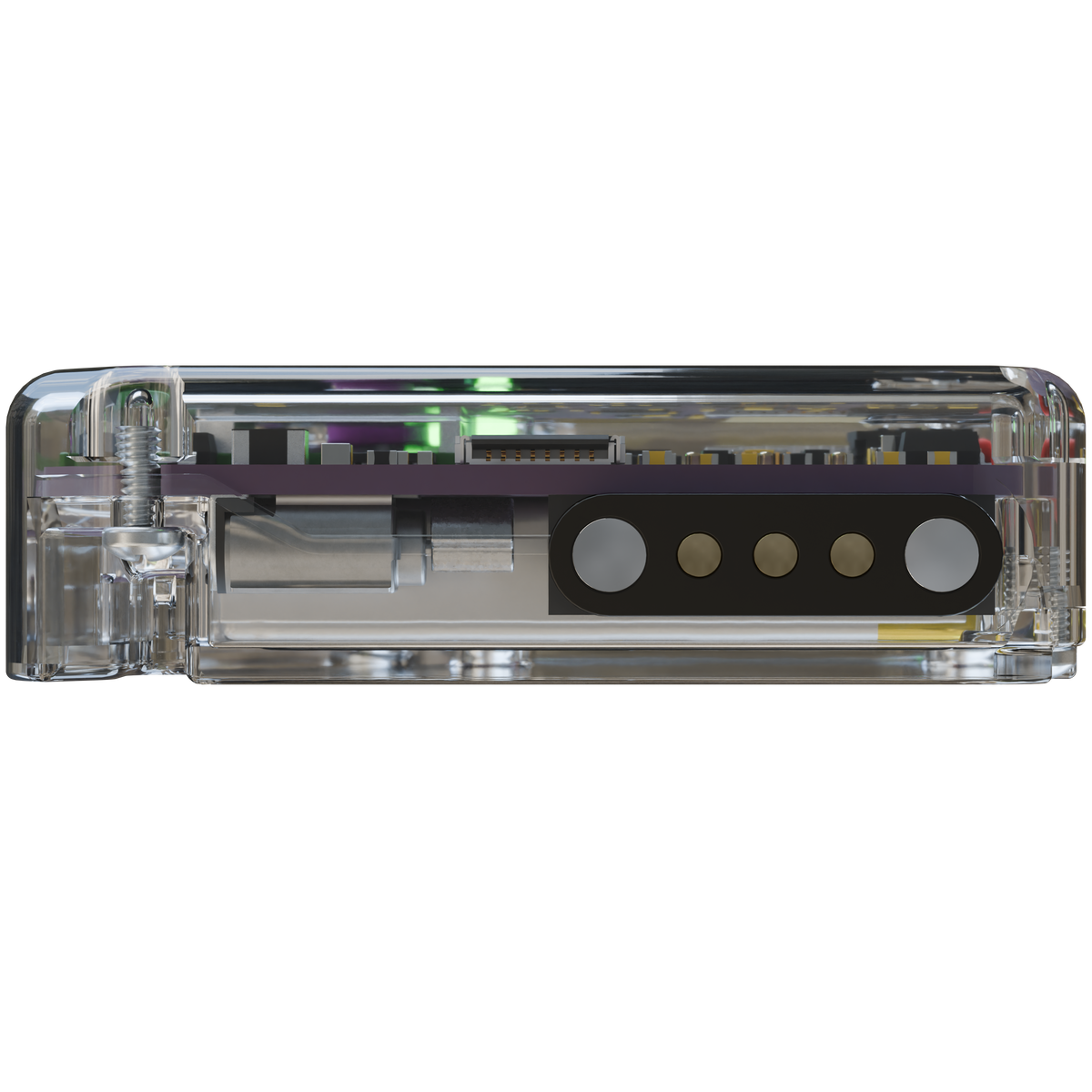

磁気コネクタにより、トラッカーとビーコンの取り付け・取り外しが素早く簡単に行えます。

1つのドックで最大8個のトラッカーと1つのビーコンを充電できます。
ドックの専用USB-C PDポートに15W充電器を接続するとわずか1時間で0%から100%まで充電でき、ドックがUSB-Cデータポート経由でPCにのみ接続されている場合は2.5時間で充電できます。


ワイヤレス接続

FluxPose Dock(別売り)はワイヤレスドングルとして機能し、最大10台のデバイスをサポートします。

オプションで、Pro Dongle(別売り)を追加すると、さらに強力な接続を介して最大10台の追加デバイスを接続できます。複数のドックやPro Dongleが接続されている場合、それらはシームレスに連携して、より多くのデバイスを接続し、ワイヤレスパフォーマンスを最大化します。


軽量。コンパクト。パワフル。

  • 重量: 15グラム

  • サイズ: 37 × 37 × 11 mm

  • バッテリー寿命: 最大24時間


同梱品

この商品には以下が含まれます。
1x FluxPose 透明トラッカー

よくある質問

Are straps included?

No, straps are not included with the kits. This gives you the choice to use FluxPose how you want, without being required to pay for straps which you might not need.

When you select a kit on the store, it will automatically select a recommended combination of straps to add to the order. You can choose to change the selection, including the option to switch to 1/4" adapters or to upgrade to comfort straps.

Please note that the beacon and trackers do not include mounting points for any strap per default. You will need to add straps or adapters to your order, or DIY your own solution.

Can I change my order or shipping address?

We cannot guarantee that we will be able to change your order or its shipping address after it is placed, but we will try our best.

For store orders, please contact us at contact@fluxpose.com. For Kickstarter pledges, please contact us through Kickstarter DMs.

Can I get an invoice?

Order placed though our store always include an invoice.

To receive an invoice for a Kickstarter pledge, please contact us via Kickstarter DMs.

Do I have to wear the beacon?

Yes, the beacon is meant to be worn. This ensures it is in range of all trackers and allows it to act as an additional tracker (usually for the hip.) Other configurations are possible but are considered DIY.

Do I need a dongle?

The included dock has a built-in wireless dongle. A separate dongle can be used for the following things:

- If you do not want to plug the dock into your PC.

- If the dock will be far away from your playspace or obstructed by other electrical devices.

- If you wish to use more than 10 devices without using an additional dock.

Does a tracker have to be attached to the headset?

Yes, a tracker must be attached to the headset. This is used to align the beacon to your headset and to keep it solidly attached to your playspace.

How fast does it charge?

A dock can charge up to 8 trackers and one beacon in less than 1.5 hours if connected to a powerful charger via its power delivery port.When the dock is only connected to a PC, charging takes about 2.5 hours. Using slower charging prolongs the life of the internal batteries.

How is FluxPose affected by metal?

Nearby metal can interfere with FluxPose, affecting the tracking quality.

Most metal inferference results in the tracking becoming more floaty. This includes rebar in concrete floors, controllers with significant metal, some spring matresses, light metal in desks or bedframes, metal bottles, metal poles, threadmills, kitchen appliences such as ovens, fridges, dishwashers.

More significant metal might cause the tracking to offset or stop working completely. This includes solid steel plates or bars, metal doorframes.

Regular magnets do not affect FluxPose.

Metal interfence generally occurs if the object comes within about 10cm of a tracker or the beacon. When the object is removed, the tracking quickly returns to normal. No recalibration is needed.

Improvements to FluxPose have reduced the impact of metal interference to the point that we believe most people will not be significantly affected by it.

How long does the battery last?

Trackers last up to 24 hours on a single charge.
The beacon has a battery life which depends on the power mode used:

- Low power: 24 hours.
- Normal: 12 hours.
- Performance: 6 hours.

How many trackers do I need?

The Lite kit is the minimum for full-body tracking, or gloves / controller tracking.
The beacon is the hip-tracker, and one tracker is placed on the headset with the included mount. After this, each tracker can be used as an independent tracking point and can be placed anywhere within the range of the beacon.


For full-body tracking you could place one tracker on each foot or leg. For hand tracking, one tracker can be placed on each glove or controller. Additional trackers can be placed on the legs, arms, chest, or any other objects you wish to track.

In cases of extreme metal interference, some setups might give lower quality tracking. See the FAQ entry "How is FluxPose affected by metal?" for more information.


Feel free to ask on the Discord for recommendations for your setup!

Is FluxPose safe?

FluxPose uses an alternating magnetic field similar to how an induction stove works, but with about 5000x less power. There are no known health risks to this technology.

We advise not to use FluxPose if you have a pacemaker or other electronic medical devices. Contact your doctor for advice.

What power mode should I use?

The beacon has 3 power modes, which affect its battery life and the tracking quality of the system.

- Low power: Low energy, such as standing, sitting or laying.

- Normal: High energy, such as dancing.

- Performance: When using controller or gloves tracking.

Using a higher power mode is recommended when trackers are further away from the beacon.

When will orders be delivered?

All orders will be shipped in the following order: Kickstarter Early Bird and Supporter Kits → All other Kickstarter Kits → Kits purchased through the store.

The current estimate is the first half of 2027.

Where do you ship from?

FluxPose is designed, assembled, calibrated and shipped from Spain.

Where do you ship to?

We ship to all countries which can be selected on the checkout page. If your country is not listed, we currently do not ship to this location. We plan to support more countries over time, and countries may be removed in the future if necessary.

Important:

If we are unable to ship to your specific address due to export restrictions, courier limitations, or changes in international regulations, we reserve the right to cancel and fully refund your order.

Which headsets are supported?

Each headset needs a custom adapter made for use with FluxPose. We have a number of headsets currently supported, and plan to add more in the future.

A full list of supported headsets can be found on the product page for the headset mount or any kit, under the Headset Type dropdown. If there’s another headset you would like us to support, please let us know in the Discord.

Tools to design and calibrate an adapter yourself will also be available in the future.
